Perim-Guard Security Radar SAC263

24GHz | Range 1200m, 90°

keyword：

Millimeter wave radar series

Classification：

Security Radar

Tel：

+86-731-88939916

whatsapp：

+86 152 0048 8528

E-mail：

INTRODUCTION

SAC263-800 is an intelligent wide-angle area security radar with a detection range of 1000 meters and a detection angle of 90 °. When the target enters the defense area, the radar carries out detection and early warning, outputs the distance, angle and speed information of the target at the same time, accurately locates the target position, and can fuse the video to review the target and judge whether it is the target to be alarmed. The product adopts FMCW modulation mode, and the ranging accuracy can reach 0.5 m. It adopts advanced digital beam forming (DBF) technology, which can improve the anti-jamming capability of the radar system. At the same time, through the back-end signal processing and pattern recognition algorithm, it can distinguish human and vehicle targets, effectively filter out environmental interference such as trees, wind and sand, and reduce false alarms.

Features：

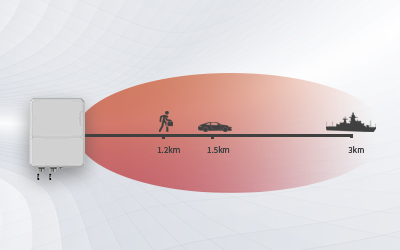

Ultra-strong perception, stability, and accuracy combined, 24GHz-ISM frequency band, measuring distance for people >1000m, 99.999% capture rate, 0.5m ranging accuracy
Utilizing AI radar technology to recognize and classify people and vehicles

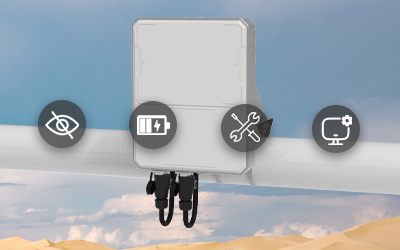

IP66 high protection rating, waterproof, dustproof, and filtering close-range mosquitoes, shock-resistant and drop-resistant, providing 7x24h all-weather real-time protection
Active learning environment, adaptive anti-interference, low false alarm rate

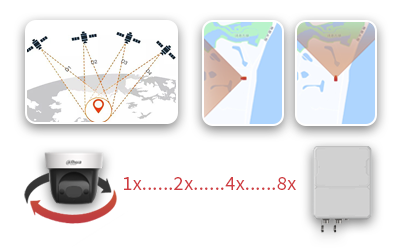

Lightweight radar-video fusion system, allowing the radar to directly control the rotation and zoom of the dome camera and being compatible with mainstream brand dome cameras
Rich in functions, supporting GPS/Beidou, adaptive calibration, anti-occlusion, and other functions, easy to use

Application：

Border and coastal defense, water security, petrochemical pipelines and other security scenarios with strong demand

None

Ground Surveillance Radar NSR300W

SPECIFICATIONS

System performance
Transmit frequency	24.00~24.25GHz	Transmitting power	20dBm
Modulating waveform	FMCW	Update rate	8Hz
Interface Specifications
Communication Interfaces	RJ45(10/100/1000M auto-negotiation)/RS485	Functional Interfaces	Built-in tilt sensor (angle attitude measurement) GPS/BeiDou dual-mode positioning LED Status Indicators ×3 (Displays device connection, network, detection, fault, and other statuses)
Alarm Interfaces	Relay_Out 1、IO_Out 1、IO_In *1	Supported network protocals	HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH
Measuring performance
Distance range	1000m(stable);1200m(max)	Range accuracy	±0.5m
Speed range	0.5m/s~30m/s	Angle measuring accuracy	±1°
Beam width	90°×13°
Operating conditions
Operating voltage	12V DC	Power consumption	＜36W
Operating temperature	-40~+65℃	Storage temperature	-40~+85℃
Protection rating	IP66
Housing
Overall dimensions (LxWxH)	234×292×49.3mm
