Water Level Measurement Radar WTR10
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION
WTR10 is a 60GHz water level measurement radar sensor independently developed by Nanoradar Technology. It adopts FMCW technology and has a measurement distance of 0.1~30 meters and a measurement accuracy of 2mm. The WTR10 adopts a lens antenna design with a beam angle of 6°*6°, which can effectively filter the clutter interference in the application environment, and the measurement results are more accurate and stable.
The product has low power consumption, small size, light weight, high measurement accuracy, and is not affected by environmental factors such as temperature, air pressure, sediment, dust, river pollutants, floating objects on the water surface, and air, and has good reliability and ease of WTR10 is a 60GHz water level measurement radar sensor independently developed by Nanoradar Technology. It adopts FMCW technology and has a measurement distance of 0.1~30 meters and a measurement accuracy of 2mm. The WTR10 adopts a lens antenna design with a beam angle of 6°*6°, which can effectively filter the clutter interference in the application environment, and the measurement results are more accurate and stable.
The product has low power consumption, small size, light weight, high measurement accuracy, and is not affected by environmental factors such as temperature, air pressure, sediment, dust, river pollutants, floating objects on the water surface, and air, and has good reliability and ease of use.
Features：
- 60GHz continuous FM wave, lens antenna design, effective filtering noise interference
- Measuring range 0.1-30m, accuracy up to 3mm
- Low power consumption design, can use solar power supply, easy installation
- Non-contact measurement, not affected by ambient temperature and humidity, and not affected by water corrosion
- Used for non-contact liquid level measurement in open channels, river channels, irrigation channels, underground drainage networks, flood control and other occasions
Application：
- Rivers, lakes, tides, reservoirs and other fields
Application：
rivers, lakes, tides, reservoirs and other fields
SPECIFICATIONS
| System performance | |||
Transmit frequency | 60.00~64.00GHz | Transmitting power | ≤10dBm |
| Modulating waveform | FMCW | Detect object | Water |
| Interface | NB/RS485/TTL | ||
| Measuring performance | |||
| Distance range | 0.1~30m | Ranging accuracy | ±2mm |
| Speed range | -200~+300km/h | Beam width | 6°×6° |
Operating conditions | |||
| Operating voltage | 12V DC | Power consumption | ≤1.5W |
Operating temperature | -40~+85℃ | Protection rating | IP67 |
| Housing | |||
| Overall dimensions(module) | 62×42×42(LxWxH)mm | Installation | Bracket |
ADVANTAGES

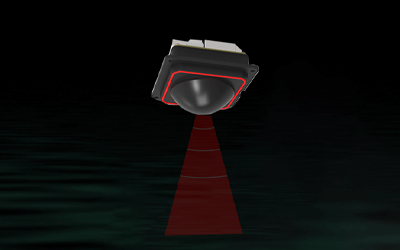

 | Non-Contact Measurement No liquid contact required for water level measurement, eliminating corrosion risks. Features a 30m detection range and 6°×6° measurement beam angle, ensuring stable monitoring in complex environments. |
 | Strong Anti-Interference Utilizes 60GHz FMCW (Frequency-Modulated Continuous Wave) technology with lens antenna design to effectively filter out clutter interference. |

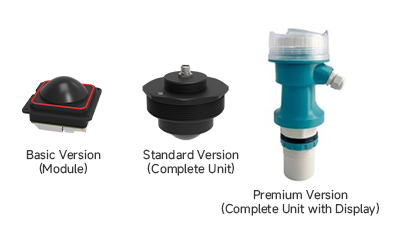

 | 3 Models Fit Your Needs The WTR10 Water Level Measurement Radar offers three configurations to adapt to different scenarios, enabling flexible solutions for full-scenario water level monitoring coverage. |
APPLICATION
VIDEO
DOWNLOAD
FAQ

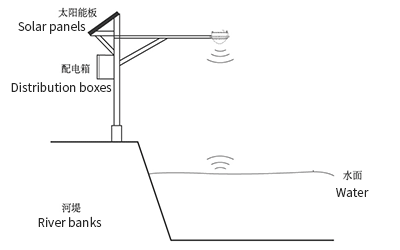

WTR10 | Installation Method
Vertical installation recommended. For angled installations:Actual Distance = Measured Distance × cos(θ)
Note: Angle θ should not exceed the specified maximum tilt angle.
WTR10 | Compatible Media
Standard version: Water (liquid level measurement). Customizable versions available for other media (solid/liquid level) with algorithm optimization.
WTR10 | Communication Protocol
Industry-standard Modbus (RTU/ASCII) protocol.
