Easy to implement and optimized anti-collision protection for vehicles of every description (particularly autonomous)
Headway control also for far-field (vehicles of every description such as cranes, construction machinery, fork-lifts, tractors, harvester combines, particularly autonomous as AGV, special transporter, and module transporter.)
Collision avoidance for cranes of every description e.g. STS, RTG, RMG, overhead cranes, gantry cranes.
Area monitoring system for far-field, e.g. of hazardous or non-accessible areas
Non-radar-reflecting object detection by affixing a protective cover
Classification of objects (> 120 single cluster)
Object detection, e.g. in confusing or unclear areas
Distance and speed monitoring
Road traffic technology e.g. parking area surveillance
Rail traffic technology, approximation aid for bumper

None

ARS 548 RDI

SPECIFICATIONS

System performance
Transmit frequency	76~77GHz	Interface	CAN(500kbit/s)
Refresh rate	72ms
Measuring performance
Distance range	0.2~250m far range, 0.2~70m/100m@0…±45° near range and 0.2~20m@±60° near range	Ranging accuracy	±0.4m far range, ±0.1m near range
Speed range	-400~+300km/h	Azimuth beam width	2.2° far range 4.4°@0° / 6.2°@±45° / 17°@±60° near range
Operating conditions
Operating voltage	8~32V DC	Power consumption	6.6W
Operating temperature	-40~+85℃	Storage temperature	-40~+90℃
Protection rating	IP 6k 9k (dust, high-pressure cleaning) IP 6k7 (10 cm under water), ice-water shock test, salt fog resistant, mixed gas EN 60068-2-60
Housing
Overall dimensions (LxWxH)	138×91×31mm	Weight	320g

ADVANTAGES

Fast and safe: The ARS 408 dispels with the apparent contradiction between excellent measuring performance and a high degree of operational safety. The optimized ARS 408-21 radar sensors are capable of determining the distance to an object with real-time scanning and evaluating, considering the driving speed, a possible risk of collision.

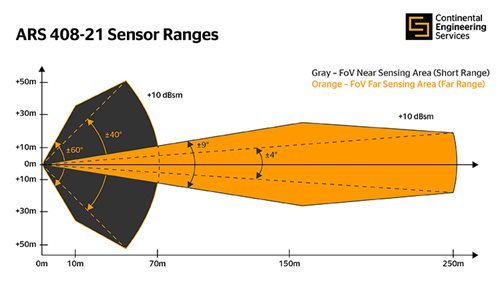

Longer Range: The effective detection radius of the ARS 408 is up to 70 meters (about 76 yards) in the SR mode or up to 250 meters (about 273 yards) in the FR mode.

Reliable: The ARS 408 radar sensor can recognize sensor failures and the environment. Without the use of a filter, it is possible to eliminate ghost targets – every target is a real target.

All-weather capability: The ARS 408 is capable of operating in all weather conditions and has only low-performance losses in extreme situations.

Cost-efficient: Using a radar technology with a less complex measuring principle and the development and mass production in the automotive industry, the costs are kept low.

Extended range possible: With a special software version, the ARS 408 can extend its measurement range up to 1,200 meters! (For objects with high RCS and an unobstructed field of view).
