Low-Speed Obstacle Avoidance Radar MR76
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION
MR76 is a compact 77GHz front anti-collision radar developed by Hunan Nanoradar Science and Technology Co., Ltd. It can accurately remind drivers of obstacles in front of commercial vehicles by transmitting two-beam fan-shaped microwaves to the front, detecting the reflection of microwaves, judging whether there are obstacles in front, and feedback the relative distance between obstacles and radar.This product adopts double beam design, 0.2~170m measurement distance, small size, high sensitivity, stable performance, light weight, easy to integrate, product performance has been recognized by many partners.
Features：
- Work in 77GHz Band for the detection of moving objects
- Compact size
- Accurately measure the direction, range, velocity and angle of moving targets
- Protection rating IP67
- Hige detection rate
Application：
- Forward collision warning for commercial/passenger/special vehicles
SPECIFICATIONS
| System performance | |||
Transmit frequency | 76.00~77.00GHz | Transmitting power | 29.8dBm |
| Modulating waveform | FMCW | Refresh rate | 60ms |
| Interface | CAN(500kbit/s) | ||
| Measuring performance | |||
| Distance range | 0.20~170m@±4°，0.20~120m@±9°(LR) 0.20~70m@±9°，0.20~40m@±45°(SR) | Ranging accuracy | ±0.3m |
| Speed range | -200~+300km/h | Multi-target monitoring | 64 |
| Beam width | 90°×14° | ||
Operating conditions | |||
| Operating voltage | 12V DC | Power consumption | 2.5W |
Operating temperature | -40~+85℃ | Storage temperature | -40~+90℃ |
| Protection rating | IP67 | ||
| Housing | |||
| Overall dimensions (LxWxH) | 137×66×31.5mm | Weight | 124g |
ADVANTAGES

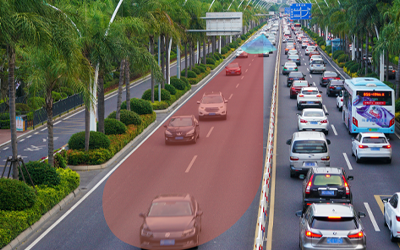

 | Dual-Beam Detection Near-and-far dual-beam detection: Mid-Range Beam: Extended detection range for early warning. Short-Range Beam: Wide coverage to reduce collision risks in close proximity. |

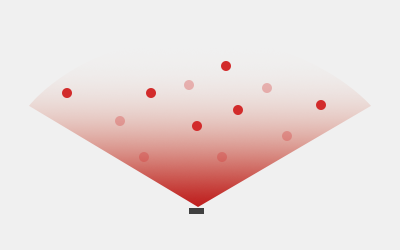

 | Multi-Target Tracking Supports simultaneous detection and tracking of up to 100 targets, with real-time output for 64 targets to deliver the most precise results in minimal time. |
 | Resilient in Harsh Environments IP67-rated for high waterproof and dustproof performance. Resistant to shocks and vibrations, ensuring stable operation in extreme conditions. Unaffected by adverse environmental factors such as light, dust, rain, snow, fog, or sandstorms. |
