Multi-Lane Speed Enforcement Radar TSC224
Speed range: 5–250km/h
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION
SC224 is a high-performance multi-lane speed radar with completely independent intellectual property rights owned by Nanoradar Technology. It adopts "MIMO + DBF" technology, is installed above the road, supports front and side installation, and can detect and track multiple vehicle information in multiple lanes in real time, with accurate positioning and high capture rate. TSC224 A radar can detect the speed of vehicles in up to four lanes, cooperate with the camera to complete the capture of speeding vehicles, and the capture rate is as high as 99%.
Features：
- Ultra-strong perception, Lane-level target detection，24GHz-ISM frequency band, One radar can detect the speed of vehicles in up to 4 lanes，Vehicle capture rate ≥ 99%
- Simple installation and debugging: The radar integrates the lane sight, level and gyroscope,support WIFI and WEB service
- All-day and all-weather, IP67 protection, applicable to all kinds of bad weather environment,such as rain, snow, fog,dust, etc
- Deep opening of 10 + algorithm parameters,and accurately adapt to diversified traffic scenarios
Application：
- Speed law enforcement, lane-level early warning, traffic monitoring and other scenarios
SPECIFICATIONS
| System performance | |||
Transmit frequency | 24.00~24.25GHz | Capture rate | ＞99%（traffic condition dependent） |
| Transmit power | 10dBm | Modulating waveform | FMCW |
| Interface | RS485/Wi-Fi/Network port(select one) | ||
| Measuring performance | |||
| Distance range | 6~50m | Cover the lane | 4 lanes |
| Speed range | 5~250km/h | Direction | Coming/going/two-way |
| Beam width | 64°×16° | ||
Operating conditions | |||
| Operating voltage | 9~28V DC | Protection rating | IP67 |
Operating temperature | -40~+85℃ | Operating humility | 5%RH-95%RH |
| Housing | |||
| Overall dimensions (LxWxH) | 198×169×42mm | Material | ABS+PC |
| Installation method | Front-mounted/Side-mounted | Certification | CE/RoHS |
ADVANTAGES

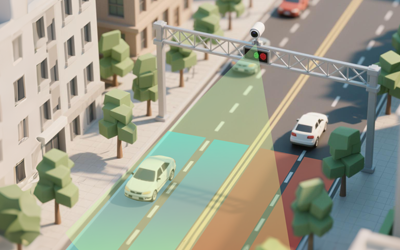

 | Lane-Level Detection High resolution enables precise lane-level detection and positioning, capturing vehicle ID, speed, and position coordinates for each lane. |

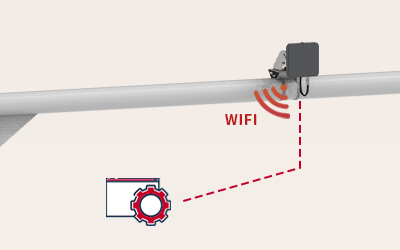

 | Easy Installation and Debugging Integrated lane sight, level, and gyroscope assist in calibrating the radar's installation angle. Wi-Fi configuration for radar parameters eliminates the need for wiring or renting aerial work platforms, reducing maintenance costs. |

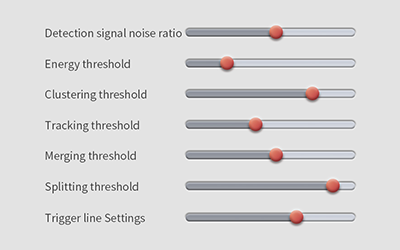

 | Open Algorithm Deeply opens 10+ algorithm parameters, allowing customers to fine-tune settings based on actual needs. Effectively avoids issues like large vehicle splitting and false alarms, ensuring optimal performance in various traffic scenarios such as highways, urban roads, curves, and construction zones. |
