Traffic Flow Radar TCM811
Speed range: -200 to +250km/h
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION
The TCM811 is a compact 80GHz radar using MIMO+DBF technology for 1.2-150m range and 6-lane detection. It tracks 128 targets, supports lane division, parking queue detection, frequency switching, and angle compensation. Ideal for monitoring large/small vehicles and electric bikes, it’s small, powerful, and easy to integrate.
Features：
- The maximum detection distance is 150m
- Support 1 to 6 lanes
- Capable of monitoring up to 128 targets simultaneously
- Support two capture modes of coming and going
- Easy installation, easy integration
- Free from external interference such as light, dust, rain and snow
Application：
- Traffic flow monitoring and intersection congestion detection
SPECIFICATIONS
| System performance | |||
Transmit frequency | 80.00~81.00GHz | Capture rate | ≥99%(100m) |
| Modulating waveform | FMCW | Update rate | 12.5Hz |
| Interface | TTL serial port | ||
| Measuring performance | |||
| Distance range | 50m(MR);150m(LR) | Cover the lane | 1~6 lanes |
| Speed range | -200~+250km/h | Multi-target monitoring | 128 |
| Beam width | 90°×13°（MR）；22°×13°（LR） | Angle measurement range | ±45° |
Operating conditions | |||
| Operating voltage | 9~16V DC | Power consumption | 2.4W |
Operating temperature | -40~+70℃ | Installation height | 3~6m(adjustable) |
| Housing | |||
| Overall dimensions (LxWxH) | 84×58mm(module) | Weight | 10g(module) |
ADVANTAGES

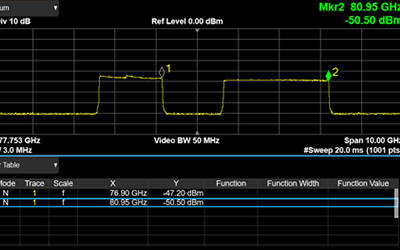

 | Frequency Isolation for Absolute Anti-Interference Utilizes the 80GHz band, physically isolated from the 77GHz band (used by automotive radars), effectively preventing interference from vehicle radars. |

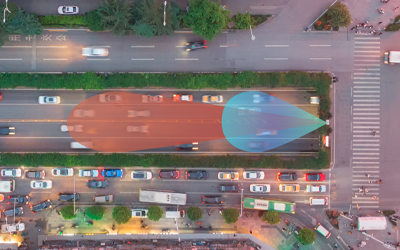

 | Dual-Beam Detection for Multi-Lane Coverage Features near-and-far dual-beam detection, enabling a measurement range of 150m and coverage of 1–6 lanes. Supports distance measurement, speed detection, and precise positioning for up to 128 targets. |
 | Strong Environmental Adaptability Unaffected by adverse conditions such as light, dust, rain, snow, fog, or sandstorms. Provides 24/7 real-time monitoring of road sections. |
