4D High-Resolution Imaging Radar SR75

77GHz | Range: 0.1–40m

keyword：

Millimeter wave radar series

Classification：

Vehicle Radar

Tel：

+86-731-88939916

whatsapp：

+86 152 0048 8528

E-mail：

INTRODUCTION

The SR75 is a high-precision 4D point cloud environment sensing millimeter-wave obstacle avoidance radar customized by Nanoradar for low-speed vehicle applications. SR75 adopts a unique antenna design, which increases the detection and analysis of the target height dimension data, and can realize the high-resolution information perception of the 4D space of distance, speed, level and pitch. SR75 data has ultra-high resolution, which can accurately analyze the outline, category and motion state of the target. The SR75 is compact (105.2×72×19.5mm), has a long measuring distance (40 meters), and has an integrated peripheral interface (CAN-FD interface) with slow forward collision prevention.

Features：

Operates in the 77GHz band
Accurately detect the moving direction, distance, speed and angle of the moving target
The detection distance is 40m and the coverage angle is 150°

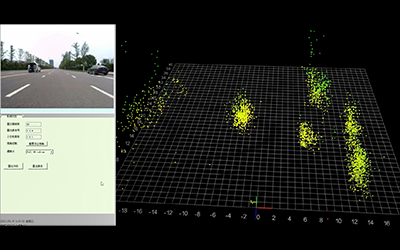

Achieves 1500 point cloud/frame imaging

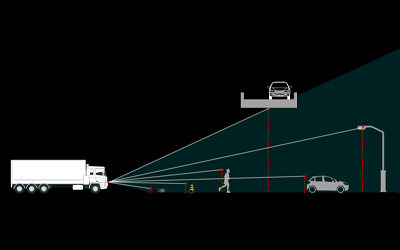

Identify target altitude information
Protection level IP67

Application：

It can meet the rapid growth of special vehicle forward or backward reverse safety assistance driving needs, and can also meet the various obstacle avoidance needs of robots. The products are used in low speed vehicles such as unmanned sweeper, environmental protection vehicle, driving training car, mining car and so on

None

4D High-Resolution Imaging Radar SR75

SPECIFICATIONS

System performance
Transmit frequency	76.00~77.00GHz	Transmitting power	21dBm
Modulating waveform	FMCW	Refresh rate	100ms(Point Cloud Mode) 50ms(Object Mode)
Interface	CAN
Measuring performance
Distance range	0.1~40m	Ranging accuracy	±0.05m
Speed range	±18m/s	Multi-target monitoring	64
Beam width	120°×30°	Angle Measurement Range	120°
Maximum target number	1500 point clouds/frame(Point Cloud Mode) 128/frame (Object Mode)
Operating conditions
Operating voltage	9.0V~24V DC	Power consumption	2.5W
Operating temperature	-40~+85℃	Storage temperature	-40~+105℃
Protection rating	IP67
Housing
Overall dimensions (LxWxH)	105.2×72×19.5mm	Weight	112g
