Waterside Aerial Survey Radar WTR1500W

24GHz | Range 1500m

keyword：

Millimeter wave radar series

Classification：

Security Radar

Tel：

+86-731-88939916

whatsapp：

+86 152 0048 8528

E-mail：

INTRODUCTION

WTR1500W is a newly developed K-band wide-beam regional water aerial survey radar. It adopts the highly complex FMCW modulation mode, and uses various advanced technologies such as TBD, PDA, JPDA, MIMO, MTD, STAP, EKF, micro-Doppler sensing, and neural network based radar environment cognition. It can detect the distance and Angle information of moving targets with high accuracy, effectively filter the false positives of water waves, support 1 channel alarm output, adopt reliable transceiver integration technology, and have the characteristics of high sensitivity, wide detection range, strong environmental adaptability, accurate detection, easy integration, stable performance and high cost performance. By detecting and identifying targets within the warning range of illegal intrusion to provide early warning function, it can provide all-day, all-weather security and track monitoring for the surrounding environment of important facilities.

Features：

Moving target detection radar operating in 24GHz-ISM band
The farthest target detection distance is 1500m, and the wide-angle detection is 90°
It can detect large and small ships in the water area, and remove interference such as birds, trees, and splash
Support radar communication protocol, SDK, web API and other protocols and development kits, flexible development

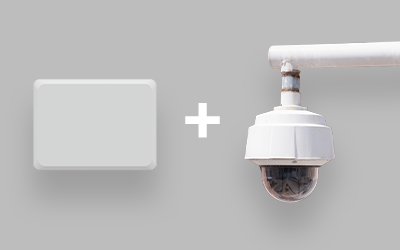

Actively search for target information, guide camera picture positioning, on-site drive sound and light alarm

Application：

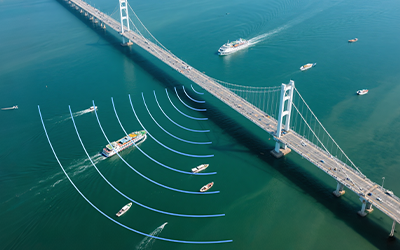

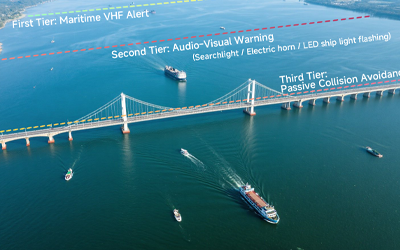

Bridge collision avoidance, channel bayonet, inland river prohibited fishing monitoring, port terminals, ocean pastures, offshore platforms, offshore wind power and other security scenes with strong demand

Surface Surveillance Radar WTC261-3000

None

SPECIFICATIONS

System performance
Transmit frequency	24.00~24.25GHz	Update rate	8Hz
Transmit power	20dBm	Modulating waveform	FMCW
Interface	RJ45 Port: 10/100/1000M auto-negotiation 1x Alarm Output: On-site driving capability for audible/visual alarms
Measuring performance
Distance range	800m(small vessel）；1500m(large vessel）	Ranging accuracy	±3m
Recognition speed	-30m/s~+30m/s	Angle measuring range	90°×13°
Coverage area	Max:150000㎡ , Min:20㎡
Operating conditions
Operating voltage	12V DC/PoE+	Power Consumption	17W
Operating temperature	-40~+65℃	Storage temperature	-40~+85℃
Protection rating	IP66
Housing
Overall dimensions (LxWxH)	235×175×47.5mm	Weight	1.6kg
