Surface Surveillance Radar WTC261-3000
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION
The WTC261-3000 is a 24GHz surface surveillance radar with a 3000m range, 90°coverage, and 128-target detection. Using FMCW, MIMO, and micro-Doppler sensing, it accurately detects distance and angle, filters out false targets, and identifies ship sizes. Highly sensitive, stable, and cost-effective, it’s ideal for bridge collision prevention, port monitoring, and waterway surveillance.
Features：
- The maximum detection distance is 3000m
- Wide angle detection 90°
- Detects large and small vessels in waterways
- Actively searches targets, guides camera positioning, and triggers audio-visual alarms
- Filters out birds, water splashes, and resists light, dust, rain, and snow interference
Application：
- Bridge collision prevention, ports and docks, waterway checkpoints, offshore platforms, and inland river fishing bans
SPECIFICATIONS
| System performance | |||
Transmit frequency | 24.00~24.25GHz | Update rate | 10Hz |
| Modulating waveform | FMCW | ||
| Interface Specifications | |||
| Communication Interfaces | RJ45(10/100/1000M auto-negotiation)/RS485 | Functional Interfaces | Built-in tilt sensor (angle attitude measurement) GPS/BeiDou dual-mode positioning |
| Alarm Interfaces | Relay_Out *1、IO_Out *1、IO_In *1 | Supported network protocals | HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH |
| Measuring performance | |||
| Distance range | 1500m(small vessel）；3000m(large vessel） | Ranging accuracy | ±2m |
| Velocity-measurement range | 0.5~30m/s | Angle measuring range | 90°×13° |
Operating conditions | |||
| Operating voltage | 12V DC | Power Consumption | 28W |
Operating temperature | -40~+70℃ | Storage temperature | -60~+85℃ |
| Protection rating | IP66 | ||
| Housing | |||
| Overall dimensions (LxWxH) | 234×292×49.3mm | ||
ADVANTAGES
Wide Angle, Long Range, Accurate Detection Maximum detection range of 3000m, wide-angle detection of 90°, and precise detection of vessels of various sizes in water areas. | |

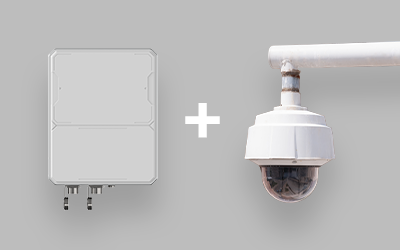

 | Lightweight Radar-Vision Fusion, Easy Integration Lightweight direct control system, no need for an upper computer. The radar can directly control the PTZ camera's rotation and zoom. Actively searches for target information, guides camera positioning, and triggers on-site audio-visual alarms. Excellent compatibility, supports 10+ mainstream PTZ camera brands and multiple databases. Complies with RTSP standards for efficient, real-time video streaming. |

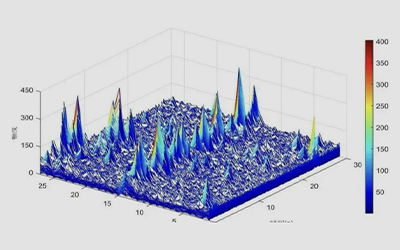

 | Strong Anti-Interference Ability Uses cognitive radar technology to actively learn the environment and adaptively resist interference. Real-time detection and filtering of radio interference prevent adverse effects from high-power radar and reduce false alarms. |

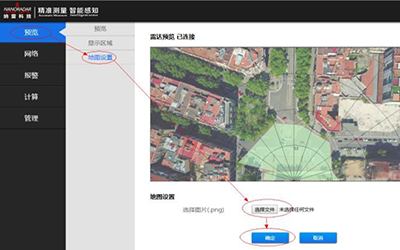

 | WEB-Based One-Stop Management, Easy Operation Plug-and-play, ready for use upon power-up with no complex configuration required. Visual interface displaying GPS and device installation information. One-click scene selection, intelligently switching between scenarios such as sunny days, rainy days, bridges, rivers, and ports. Customizable area drawing, allowing users to define alarm, warning, and filtering zones to focus on key areas of interest. |
