Single Lane Speed Enforcement Radar TSR10
Speed range：5~300km/h
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION

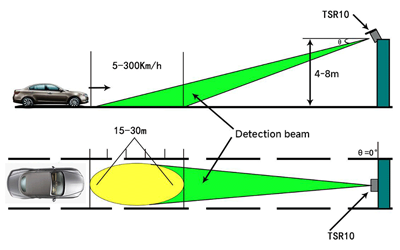

TSR10 is a 24GHz traffic distance and speed measurement radar with extreme performance in the industry. It can accurately measure target distance, speed and other information by using the difference between the transmitted radio wave and echo wave. TSR10 uses narrow beam to cover only a single lane, avoiding interference of adjacent lanes. It has the function of ranging and ensures accurate positioning and triggering of all kinds of vehicles, which can meet the application requirements of single-lane speed measurement and flow monitoring of gate system.
Features：
- Cost-effective short-range k-band millimeter-wave sensor
- Monitoring distance of 15 ~ 30 meters
- Can detect the distance and speed of moving vehicles
- High ranging and speed measurement accuracy
Application：
- Checkpoint systems, distance and speed measurement, and traffic flow monitoring
SPECIFICATIONS
| System performance | |||
Transmit frequency | 24.00~24.25GHz | Update rate | 40Hz |
| Transmit power | 20dBm | Modulating waveform | FMCW |
| Interface | RS485/RS232/Wi-Fi/L(H) level | ||
| Measuring performance | |||
| Distance range | 15~30m | Ranging accuracy | ±0.5m |
| Speed range | 5~300km/h | Beam width | 7°×7.5° |
Operating conditions | |||
| Operating voltage | 6~16V DC | Power Consumption | ≤2W |
Operating temperature | -40~+85℃ | Storage temperature | -40~+85℃ |
| Protection rating | IP66 | ||
| Housing | |||
| Overall dimensions (LxWxH) | 198×169×42mm | ||
ADVANTAGES
 | Accurate Speed Measurement Employs advanced MMIC and signal processing technology, offering high capture rate, precise speed measurement, and stable performance. Widely applicable in road traffic checkpoint systems, it significantly improves vehicle capture performance, increases capture rate, and reduces speeding violations. |
 | Narrow Beam Design, Speed and Distance Measurement Uses advanced SiGe MMIC technology to detect the speed and direction of moving targets. Narrow beam design effectively avoids additional interference from beam spillover into adjacent lanes. |

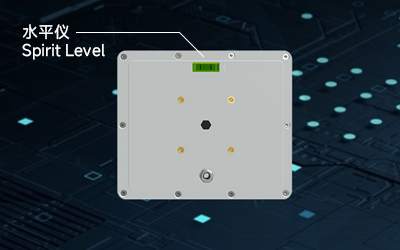

 | Integrated Design, Rich Interfaces Equipped with a built-in level and angle scale for easy installation and maintenance. Features RS485/RS232/Wi-Fi communication for convenient parameter configuration. |
APPLICATION
VIDEO
DOWNLOAD
FAQ
TSR10/TSR18 | Camera Not Triggering
Verify communication cable connection and pin configuration
Confirm camera protocol compatibility
Check serial port settings: function selection and baud rate
Ensure "Capture Mode" is enabled in Intelligent Traffic Settings
Validate radar parameters in camera settings:Working mode, Minimum target interval, Detection direction, Sensitivity
TSR10/TSR18 | No Speed Output
Verify radar alignment with target lanes
Confirm installation angle is within ±3° range
Ensure detection distance is within 30m operational range
TSR10/TSR18 | Missed Detections
Recalibrate radar alignment with target lanes
Adjust capture trigger line position
Increase sensitivity if set below threshold (default: 60)
Correct horizontal displacement if biased
