Multi-Lane Speed Warning Radar TSR18

24GHz | Range 1–180m
Speed range: 5–255km/h

keyword：

Millimeter wave radar series

Classification：

Traffic Radar

Tel：

+86-731-88939916

whatsapp：

+86 152 0048 8528

E-mail：

INTRODUCTION

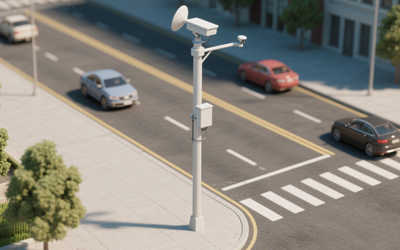

TSR18 is a 24GHz high performance traffic speed radar that uses the frequency difference between the transmitted radio waves and the return waves to accurately measure information such as target speed. TSR18 adopts microstrip array antenna design, with detection range up to 180 meters, accurate speed measurement, and can distinguish between incoming and outgoing vehicles. Installed next to the road, it can automatically measure the speed of motor vehicles traveling in 1 to 4 lanes.

Features：

Adopting advanced AI algorithm to effectively identify following cars and large vehicles and prevent missing and re-shooting
Based on spectrum refinement technology to improve the accuracy of distance and speed measurement
Vehicle capture position within ±0.5m, with consistency greater than 99%
Automatic identification of vehicle direction of travel: incoming and outgoing
Integrated design, integrated level and angle scale, easy installation
Strong environmental adaptability, radar performance is not affected by light, dust, rain, snow, haze and other harsh environments
Simultaneous RS485, RS232, Wi-Fi communication function, convenient configuration parameters

Application：

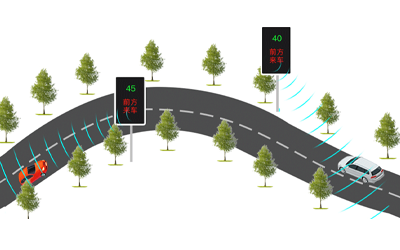

Roadside speeding capture, intersection incoming traffic reminder, speed feedback instrument application needs, applied to the highway, ordinary highway, community entrance, school section, practice section and other scenes that need to display vehicle speed

Single Lane Speed Enforcement Radar TSR10

Multi-Lane Speed Warning Radar TSR20

SPECIFICATIONS

System performance
Transmit frequency	24.00~24.25GHz	Refresh rate	20ms
Transmit power	20dBm	Modulating waveform	FMCW
Interface	RS485 \| RS232 \| Digital I/O
Measuring performance
Distance range	180m	Cover the lane	1~4 lanes
Speed range	5~255km/h	Direction	Coming/going
Beam width	10°×50°
Operating conditions
Operating voltage	12V DC	Power consumption	1W
Operating temperature	-40~+85℃	Operating humility	5%RH-95%RH
Protection rating	IP66
Housing
Overall dimensions (LxWxH)	137×117×35mm
