Ground Surveillance Radar NSR60W
keyword：
Millimeter wave radar series
whatsapp：
+86 152 0048 8528
INTRODUCTION
Nanoradar NSR60W is an intelligent wide area security radar that can detect target up to 60m. The radar detects and warns when the target enters the defense zone and support integration with video analysis technology. It adopts FMCW modulation mode, which has high detection accuracy; adopts unique digital beam synthesis (DBF) technology, which can greatly improve the anti-jamming capability of the radar system. With high-precision angle resolution capability, low-speed detection capability, through the back end signal processing and pattern recognition algorithms， the radar can distinguish between human and vehicle targets, and effectively filter out insects, birds and other animal interference.
Features：
- Moving target detection radar operating in 60GHz-ISM band
- It can detect extremely slow moving objects and filter out interference from trees, grass and other plants
- Advanced DBF technology accurately detects the target's azimuth Angle, pitch Angle, distance and other information
- Protection class IP66 for outdoor applications
- Ports Rich RJ45/RS485
- RoHS compliant
Application：
- Products can be widely used in prisons, barracks, squares, airports, ports, oil fields, oil depots and other important perimeter security areas.
SPECIFICATIONS
| System performance | |||
Transmit frequency | 61.20~61.50GHz | Transmitting power | 22dBm |
| Modulating waveform | FMCW | Update rate | 10Hz |
| Interface Specifications | |||
| Communication Interfaces | RJ45(10M/100M,PoE)/RS485 | Alarm Interfaces | Relay outputs (0.5A/125V AC)*2 Opto-isolated IO outputs (isolation voltage: 2500V AC)*2 |
| Supported network protocals | HTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH | ||
| Measuring performance | |||
| Distance range | 60m | Range accuracy | ±0.5m |
| Speed range | 0.5m/s~30m/s | Angle measuring accuracy | ±1° |
| Beam width | 120°×22° | ||
Operating conditions | |||
| Operating voltage | 12V DC/PoE power supply | Power consumption | ＜5W |
Operating temperature | -40~+75℃ | Storage temperature | -40~+85℃ |
| Protection rating | IP66 | ||
| Housing | |||
| Overall dimensions (LxWxH) | 149.5×125.5×45.2mm | ||
ADVANTAGES

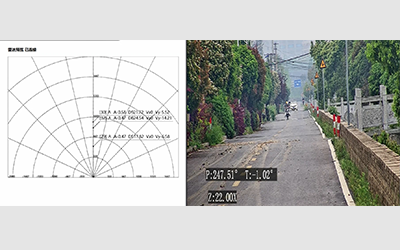

 | Radar-Video Fusion, Active Monitoring Integrates with existing video systems for a complete security solution. One radar unit can coordinate with multiple PTZ cameras for off-site cross-location, actively monitoring and continuously tracking moving targets. |

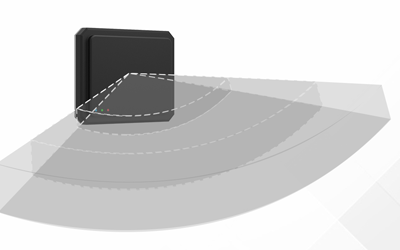

 | Wide-Angle Detection, Broader and Safer 120° wide-angle detection for expanded coverage. Equipped with 3Tx-4Rx antennas and multiple receiving channels, delivering high angular accuracy and superior signal-to-noise ratio. Utilizes multi-antenna clutter cancellation technology to effectively eliminate interference. |

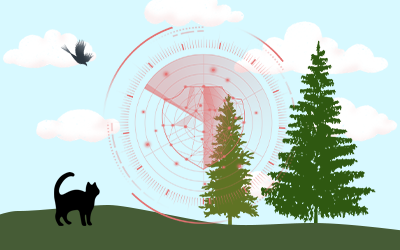

 | Target Classification, Interference Filtering Advanced backend signal processing and pattern recognition algorithms distinguish between humans, vehicles, and other targets while filtering out interference from insects, birds, and vegetation. |
APPLICATION
VIDEO
DOWNLOAD
FAQ
NSR60W | Installation Guide
Important: Do not install upside down. Correct installation: The indicator lights are located at the lower right corner when facing the radar. The arrow on the back of the radar indicates the upward-facing side.
Based on actual testing: Installation azimuth should be determined according to the key security zone requirements. Recommended installation height: 1.5m-3m. Lateral detection range: ±1.5m to ±2m (measured from centerline to both sides). Target detection distance: 60m (final settings subject to actual conditions).
For side-mounted installation: Horizontal azimuth angle: ±60°, Radar performance will be limited and cannot achieve optimal performance. Side mounting is not recommended for customers.
NSR60W | Radar Indicator Lights
Power-on status:
Red light (power indicator): Steady on
Blue light (network connection indicator): Steady on
When detecting target speed:
Green light (operation status indicator): Illuminates
NSR60W | During indoor pedestrian testing, why are pedestrian targets difficult to detect, with multipath and split false targets occurring?
When testing with the radar connected to the host PC indoors:
Pedestrian targets are difficult to detect.
Multipath and split false targets appear.
Technical explanation: Indoor testing is prone to multipath effects. These issues do not occur in outdoor field tests.
