Poor environmental adaptability (lighting/ice cover)
Lack of distance perception
High false alarm rates
...............

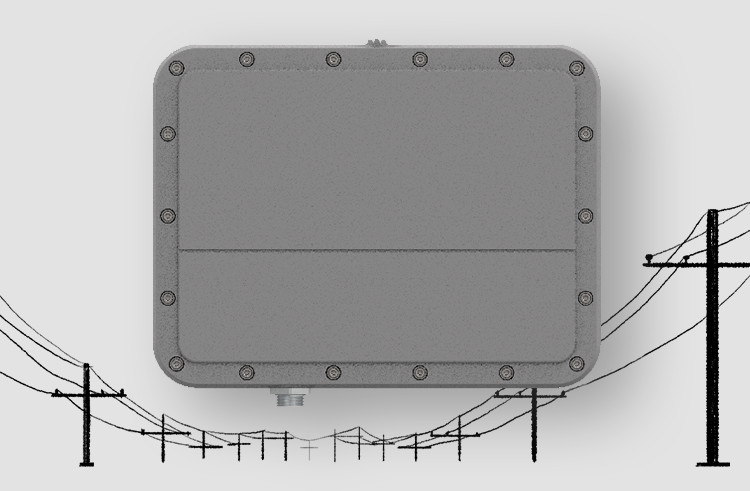

Building on visual monitoring devices, Nanoradar introduces the SPC865 4D Radar for Transmission Line Foreign Object Prevention.
Breakthrough Core Technologies
Radar-Vision Fusion Image Feature Registration + Intelligent Distance Measurement for Foreign Object Hazards
Radar Distance Measurement | All-Weather Foreign Object Hazard Monitoring

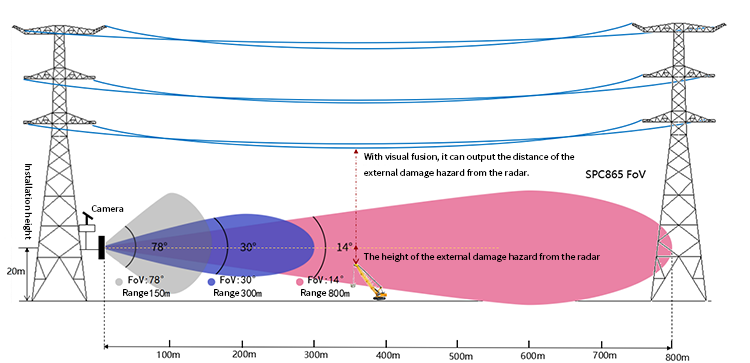

Utilizing 4D millimeter-wave radar distance measurement technology, it enables all-weather monitoring of foreign object hazards within an 800-meter length, 80-meter width, and below the conductor range, centered on multi-bundle conductors.
Radar-Vision Fusion | Distance Measurement Between Hazards and Transmission Lines
Overcoming the challenges of radar-vision fusion image feature registration and intelligent distance measurement for foreign object hazards, it performs cluster analysis based on radar-detected feature points and fuses visual recognition bounding boxes. Through coordinate system conversion and calculation, it achieves distance measurement and annotation of foreign object hazards relative to transmission line corridors and conductors.
Industry-Leading Performance
Long Range, High Precision, 4D Detection
Long Range: 800m
Adopting MIMO + phased array technology to enhance transmission energy, enabling stable detection at 10–800 meters, with a range 15%+ above industry standards.
High Precision: ±0.15m
Distance measurement accuracy reaches 0.15m, with a resolution of 0.3m, doubling industry standards.
4D Height Detection
The radar not only accurately detects target distance, angle, and speed but also measures height, enabling distance measurement between hazards and the radar to construct a three-dimensional perception space.
Triple Active Protection
Ensuring Reliable Device Operation
Anti-Malicious Blocking
Effectively identifies and resists malicious blocking of the radar detection surface, ensuring uninterrupted monitoring.
Anti-Tampering
Equipped with a built-in tamper detection alarm system, it immediately alerts when the device is destructively dismantled.
Low-Temperature Heating
The built-in heating module quickly melts snow and ice on the radar surface in low-temperature environments, ensuring detection performance in extreme cold.
Strong Adaptability
Handling Complex Environments
All-Day, All-Weather Perception
With an IP67 protection rating, it is waterproof, dustproof, filters out nearby insects, and is shock-resistant. It operates stably in extreme temperatures from -40°C to 70°C, providing 24/7 real-time protection unaffected by lighting, smoke, rain, dust, or other harsh conditions.
Active Environmental Learning, Adaptive Anti-Interference
The radar system can perceive, understand, learn, reason, and make decisions, adapting to interference in real time. It detects and filters out radio interference, avoiding adverse effects from high-power radars and reducing false alarms.
Adaptive Calibration + Dual Physical Calibration
Easier to Use

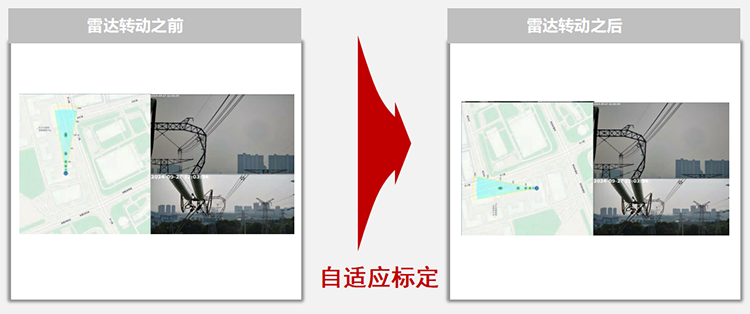

Supports Adaptive Calibration
The radar has a built-in attitude sensor that automatically detects the device's pitch, yaw, and roll angles, eliminating the need for manual calibration.

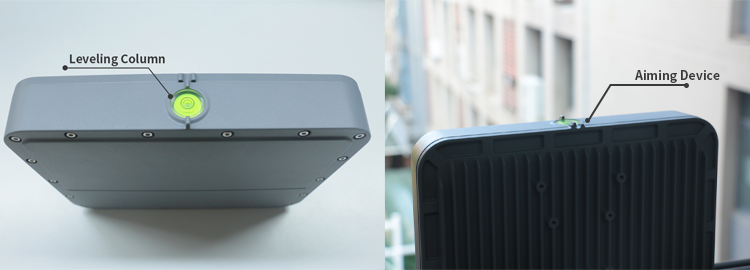

Dual Physical Calibration System: Leveling Column + Aiming Device
The leveling column assists in calibrating and adjusting the radar's pitch and yaw angles to ensure horizontal installation.
The aiming notch helps calibrate and adjust the radar's roll angle to align with the target area center, maximizing effective coverage.
Supports GPS/BeiDou
Provides Visual Management of Device Location Information
Device Positioning

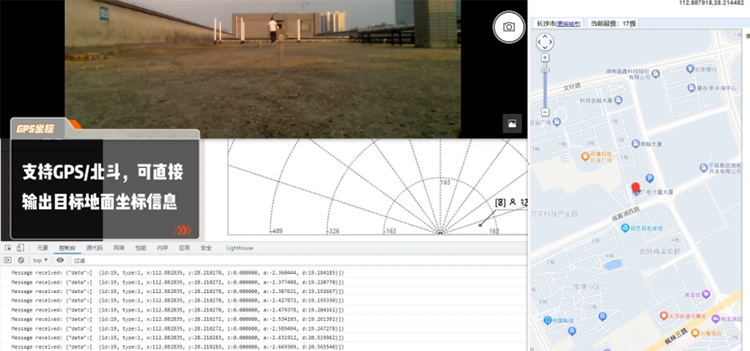

Through GPS/BeiDou, customers can obtain real-time deployment location information of the radar and output world coordinates without conversion.
Visual Management
The radar's world coordinates can be imported into high-precision maps, facilitating visual management of the devices for customers.
