Nanoradar Unveils Next-Gen UAM285 Drone Altimeter Radar
What are its key features?
How does it enhance flight safety?
Let’s dive in!

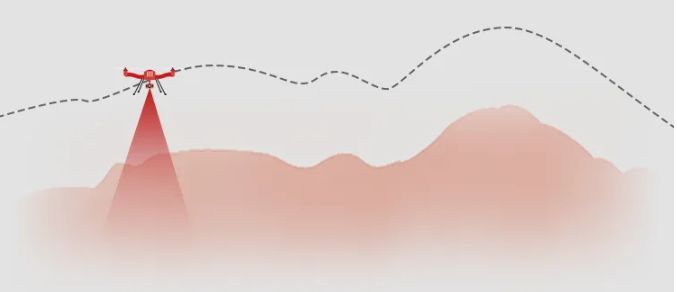

Feature 1: Dynamic Performance Leap | 50% Wider Vertical Speed Range
-60m/s to +60m/s high-speed vertical measurement, a 50% improvement over UAM231.
Precisely captures rapid climbs or emergency descents, even in strong winds or obstacle avoidance scenarios.
Delivers critical data for flight control decision-making.

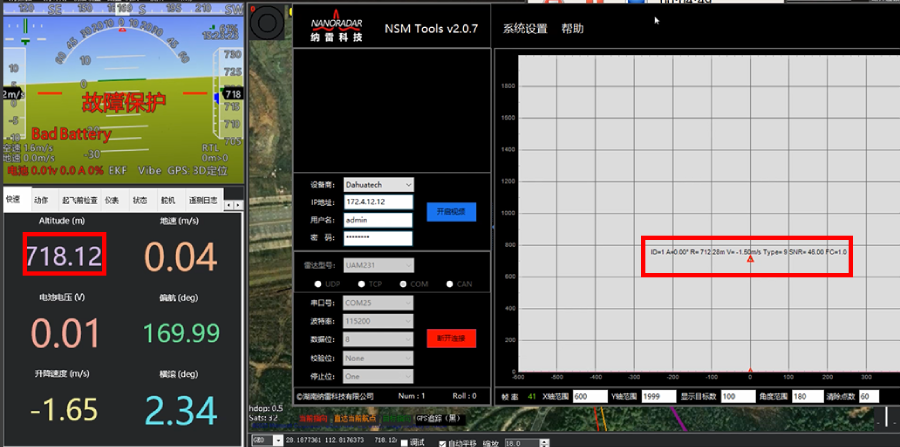

Feature 2: Out-of-Range Awareness | Confidence-Zero Active Warning
Automatically detects when altitude exceeds radar range (<0.3m or >3000m).
Triggers a "Confidence=0" warning on the interface, alerting users to unreliable data for safer flight decisions.
Feature 3: Intelligent Attitude Alert | Ensures Data Reliability
Integrates a 6-axis gyroscope, accelerometer, and magnetometer to monitor drone orientation.
Issues tilt-angle warnings if radar alignment deviates, prompting adjustments for optimal detection performance.

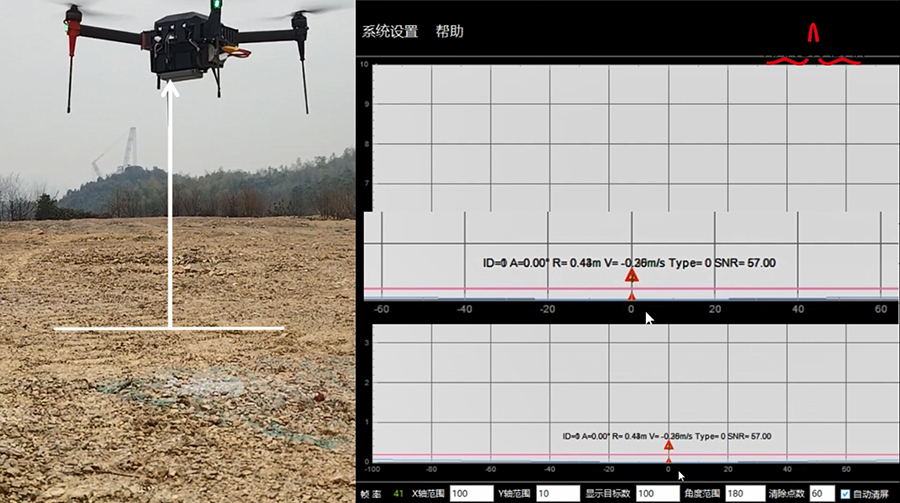

Feature 4: Minimal Near-Ground Blind Zone | 0.3m Safe Landing
Static clutter filtering and phase processing suppress interference, enhancing near-ground signal clarity.
Achieves stable detection at 0.3m with ±0.03m precision, while maintaining 3,000m long-range capability.

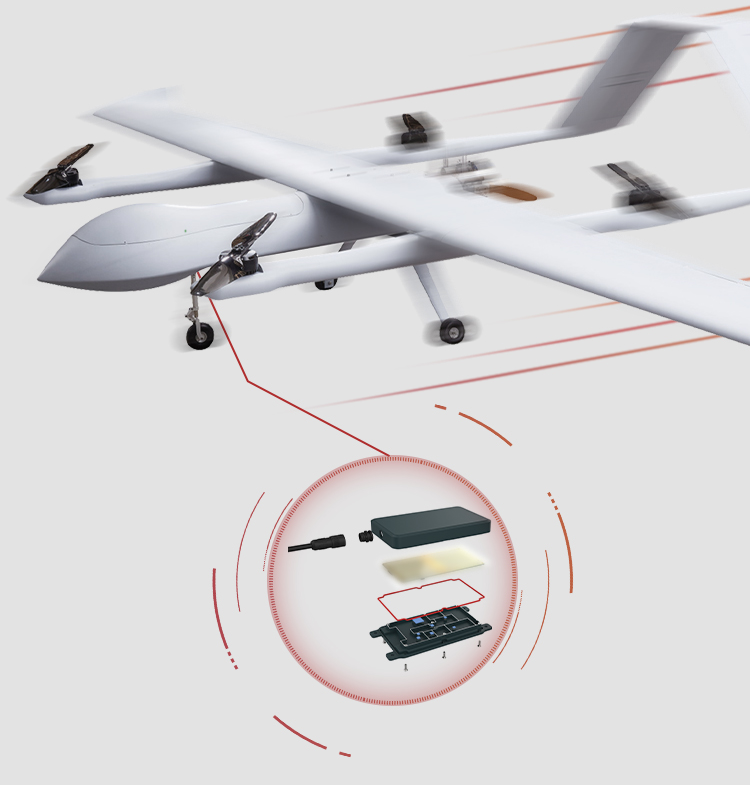

Feature 5: Modular Design | Complies with Airworthiness Standards
Reinforced critical modules:
Power unit: -40°C to 85°C wide-temperature operation.
Signal unit: Enhanced EMI resistance for high-altitude/low-temperature environments.
Physical and electrical isolation between modules (e.g., shielded power/signal units) prevents single-point failures.
Naturally meets aviation standards for functional isolation and fault tolerance.
